Alpha Wall Bed Mechanism

  • Heavy Duty & Precision Manufactured which has been tested to 10,000 cycles.
  • Robust steel bed frame.

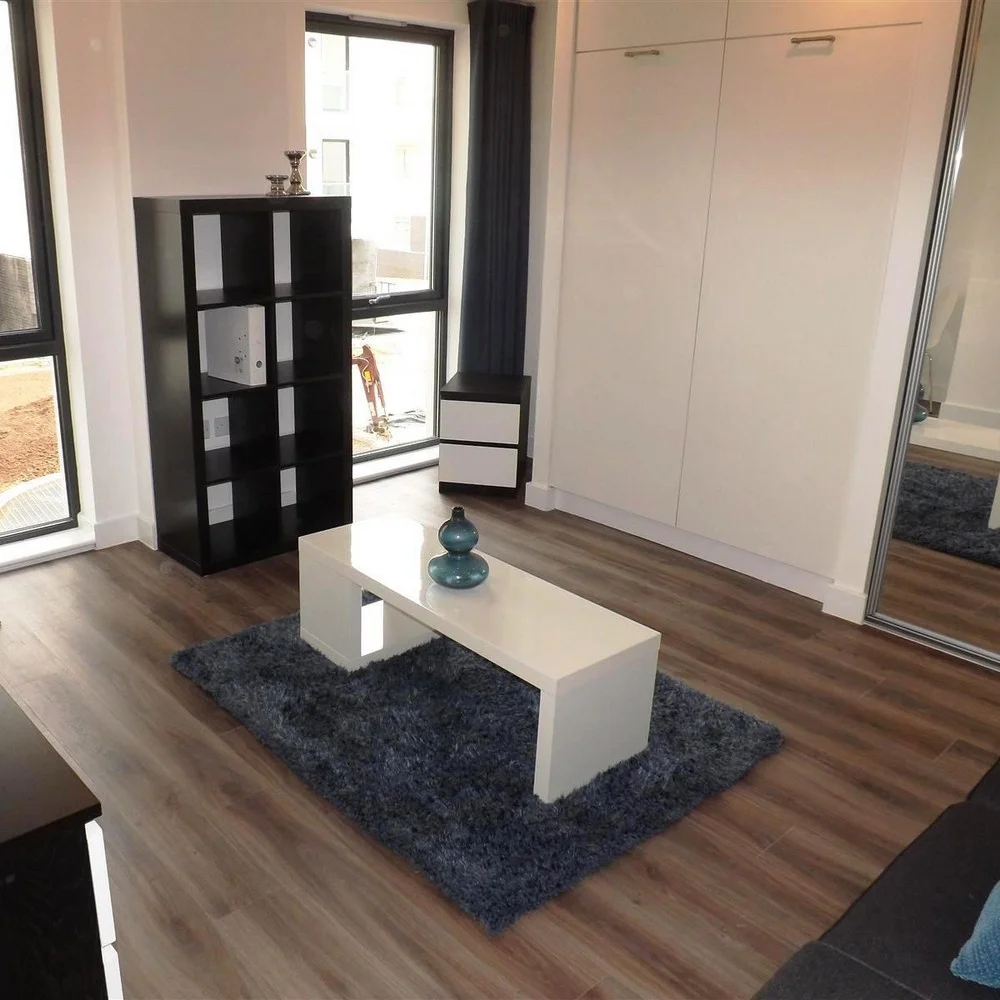

  • Compact – protrudes less than 41cm from wall when folded.

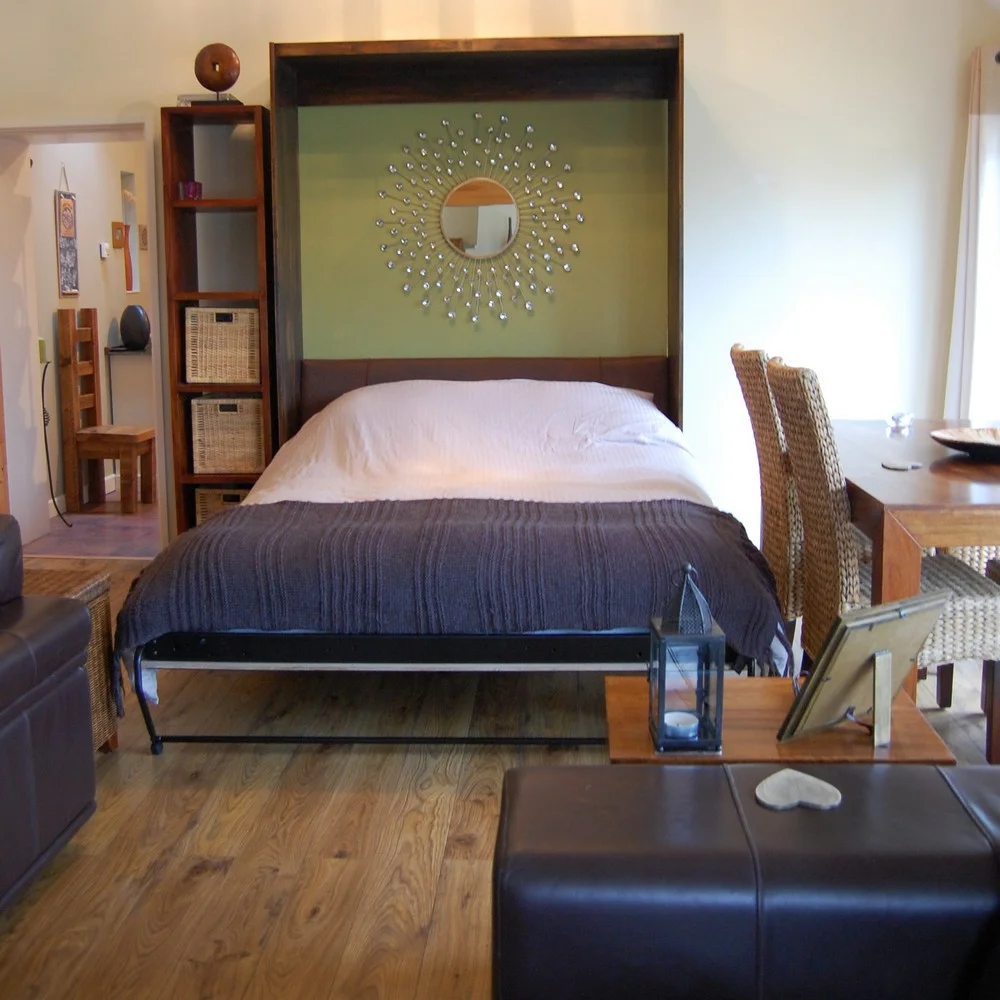

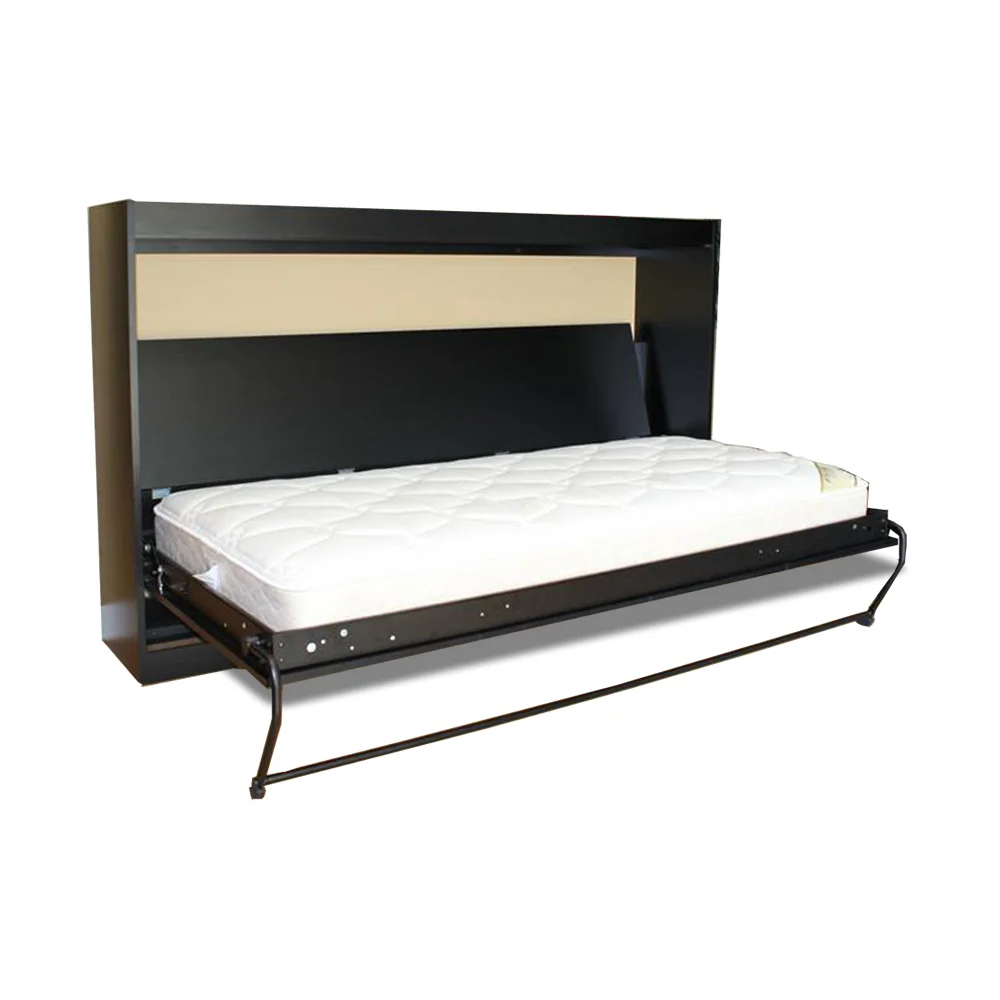

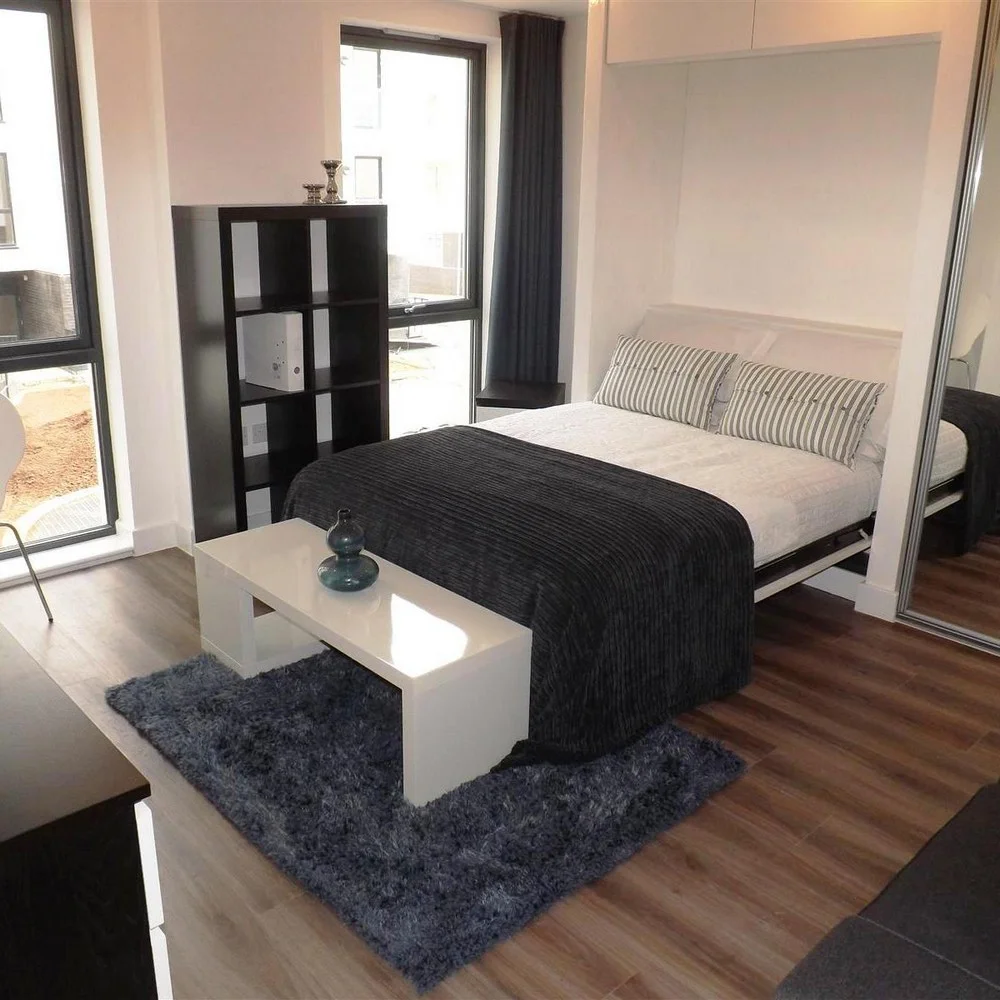

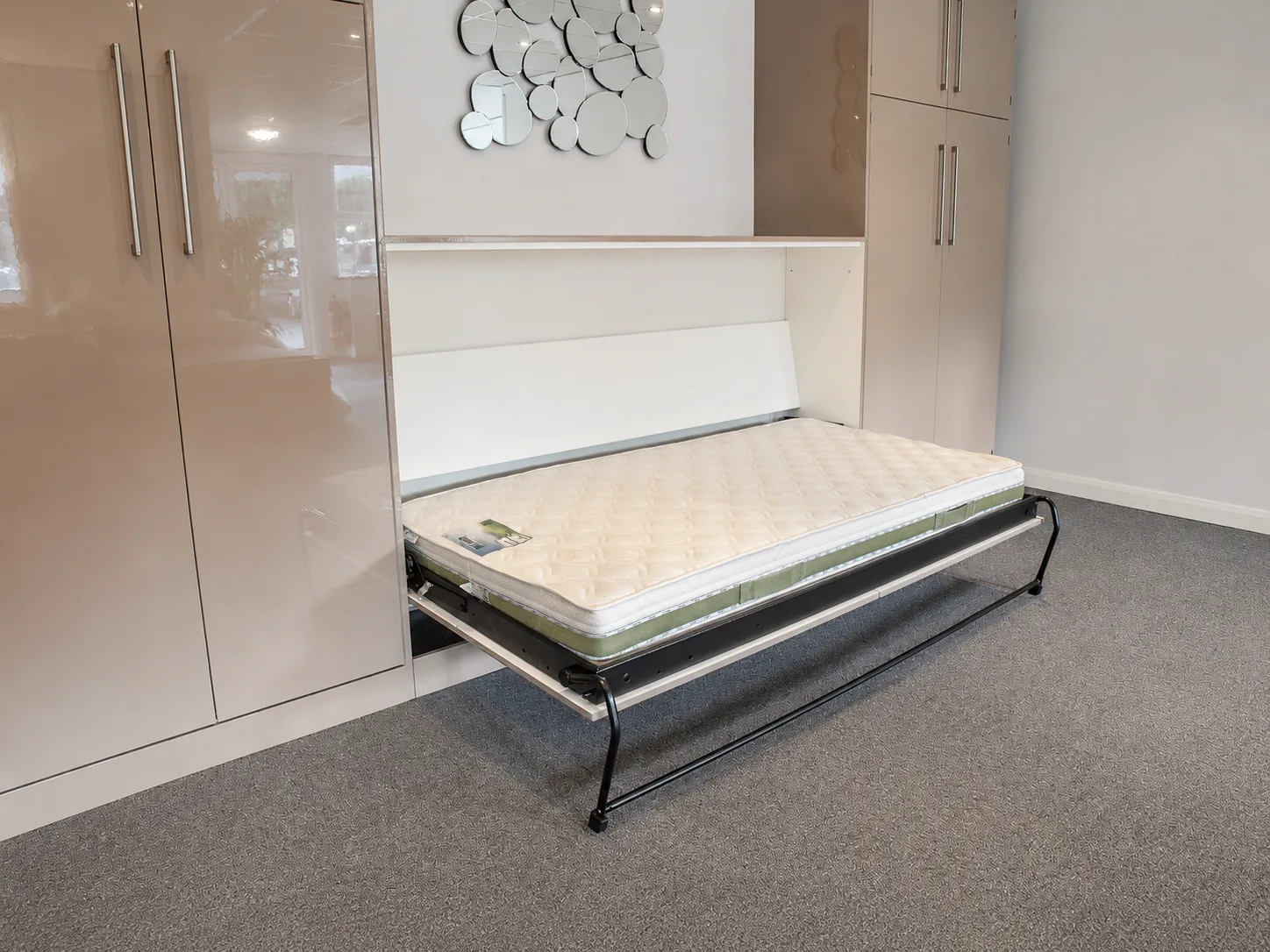

  • Mounts vertically or horizontally.
  • Spring Balance Lift Mechanism with steady release for safe lifting action.
  • Adjustable Tension to Balance.
  • Trip-Free leg system.
Limited 5 YEAR warranty on manufacturer defects. Misuse, abuse, or damage by misapplication are not covered. Please note: wall bed frames and mechanisms are illustrated with cabinets and doors (purchased separately) for demonstration purposes only.

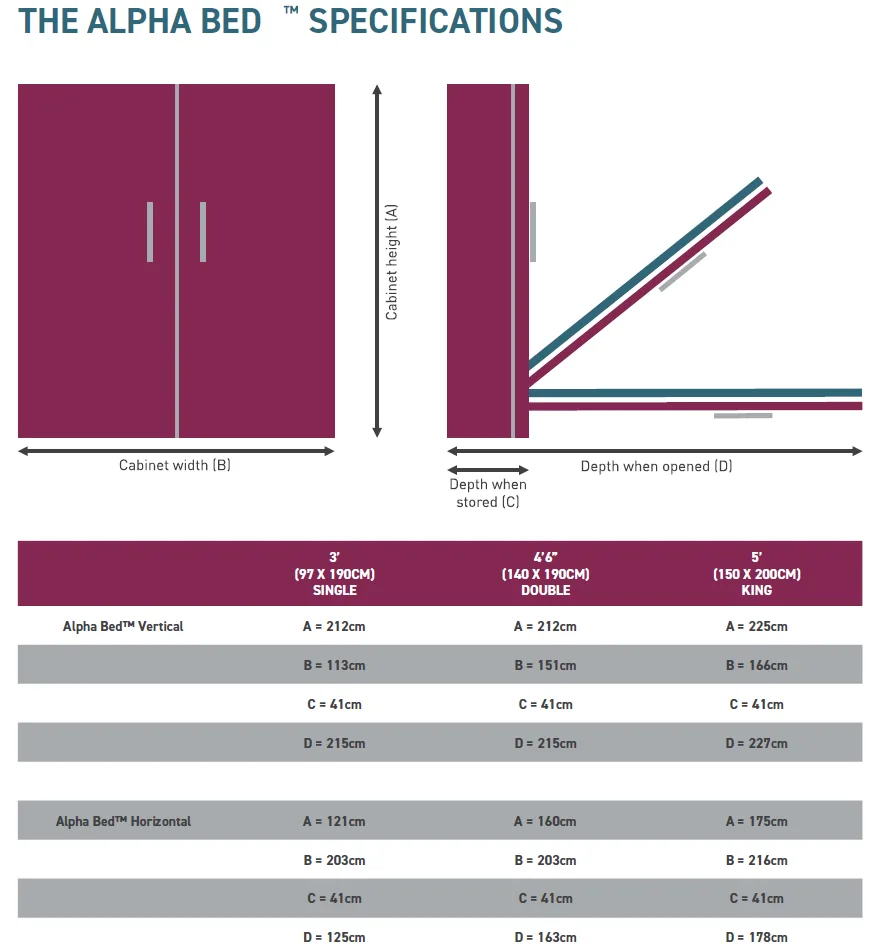

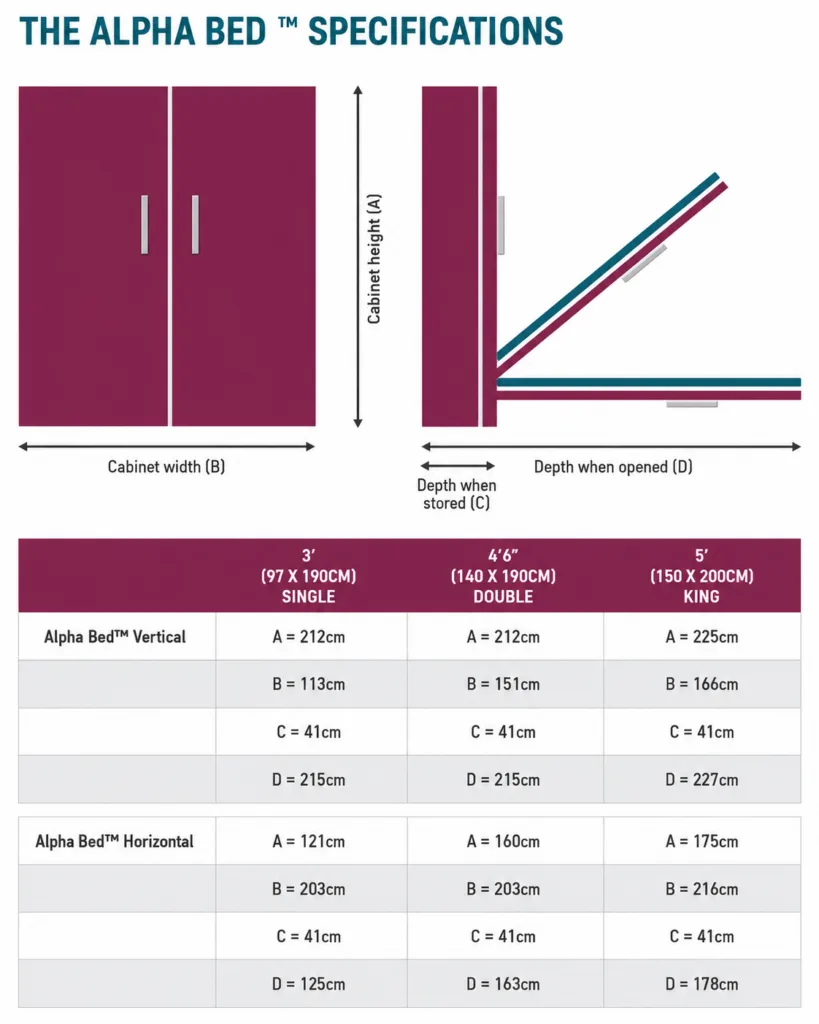

Dimensions, Specifications & Downloads

For product dimensions and installation information please click on the PDF tab where you will be able to view.


Dispatched from our UK warehouse.


Via phone, email or live chat.


Checkout with or without a PayPal account.


Spread the cost up to 12 months, with interest free credit 0% APR.

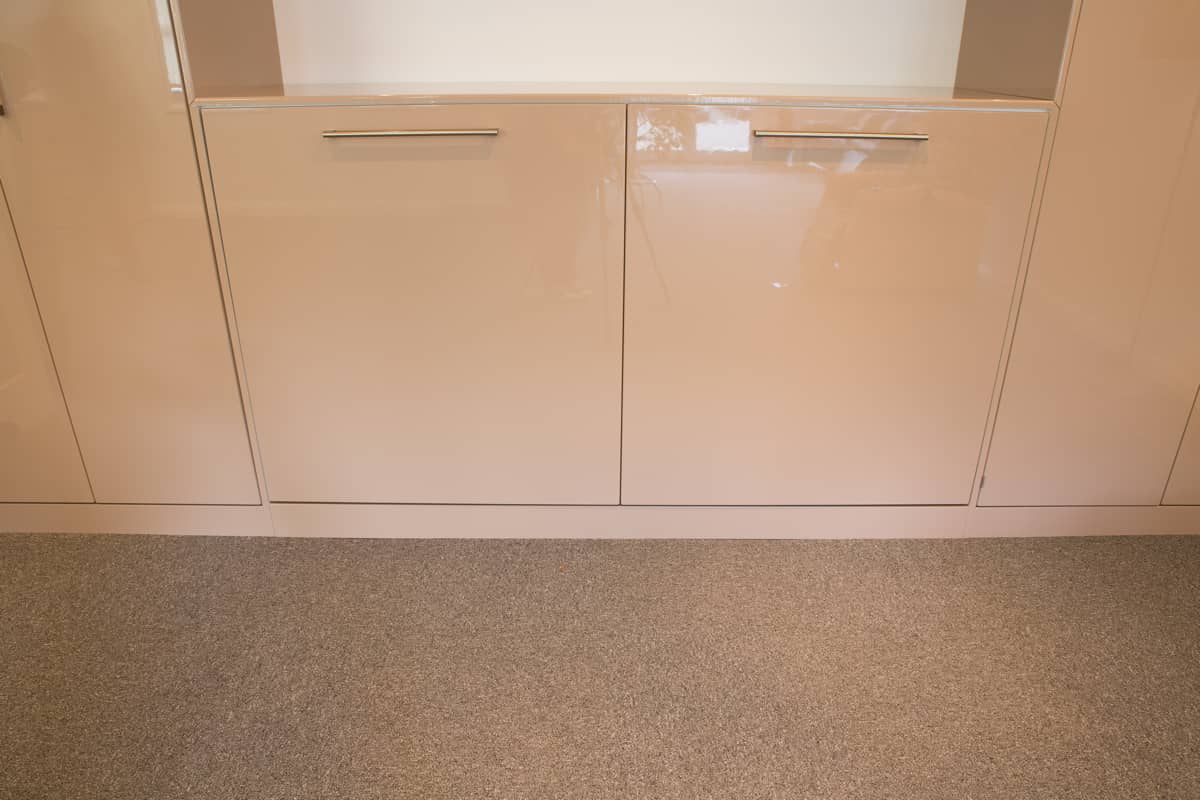

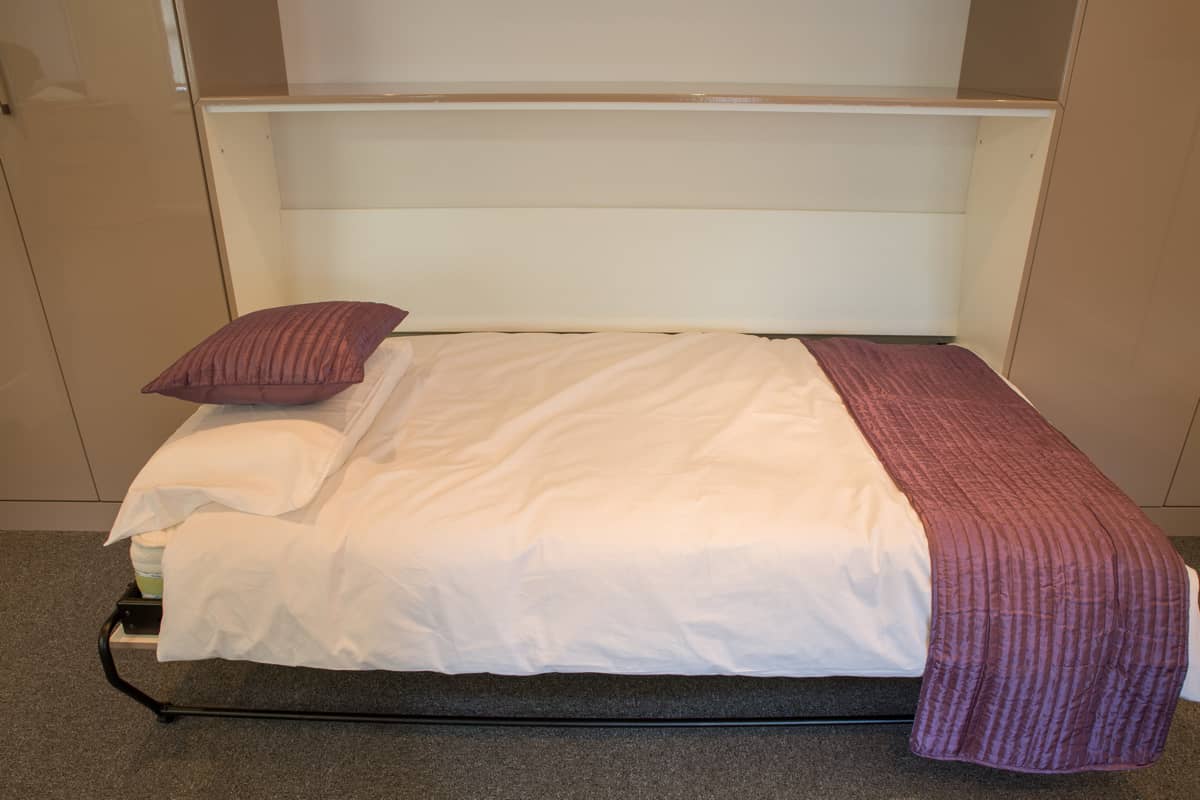

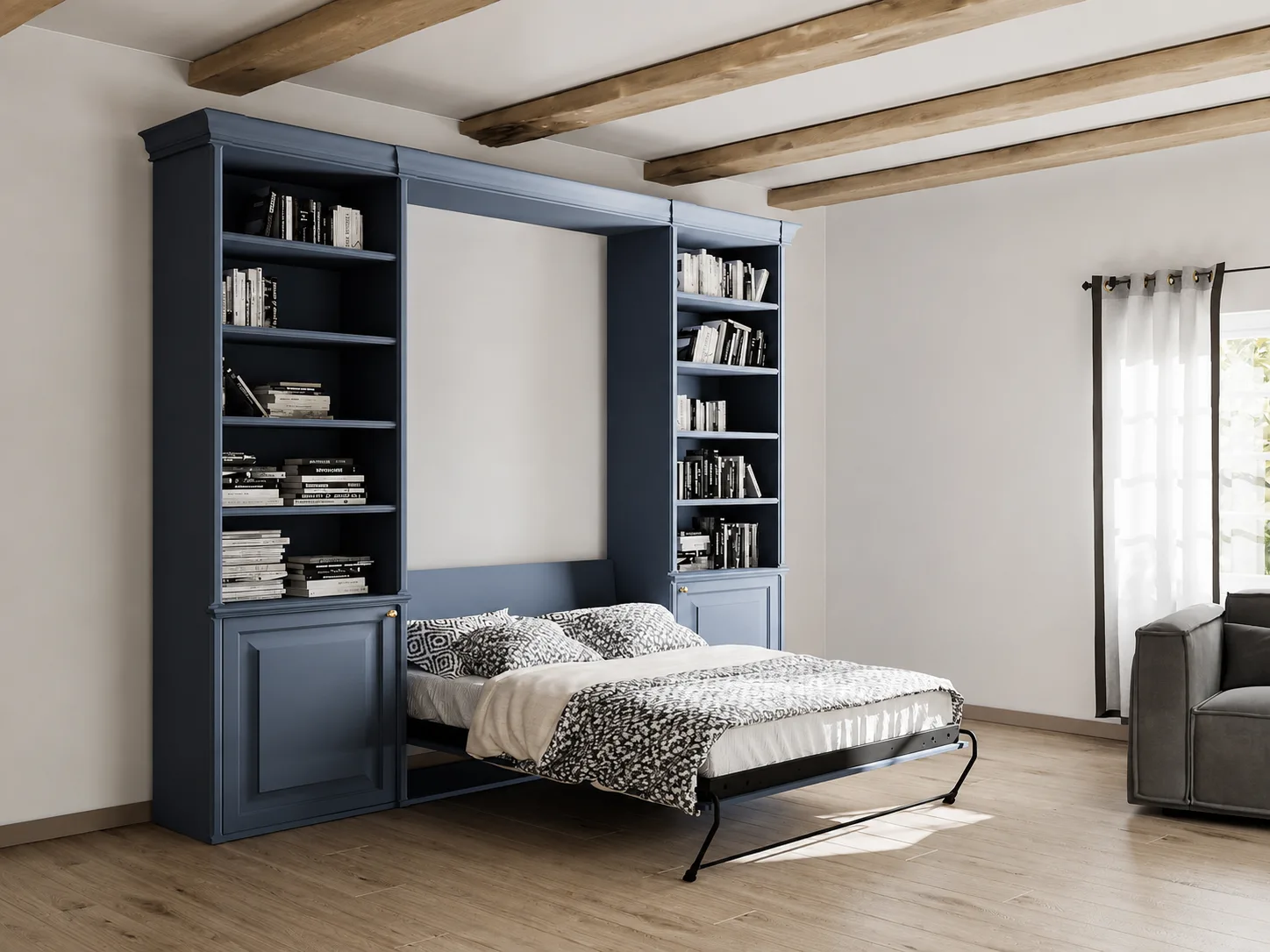

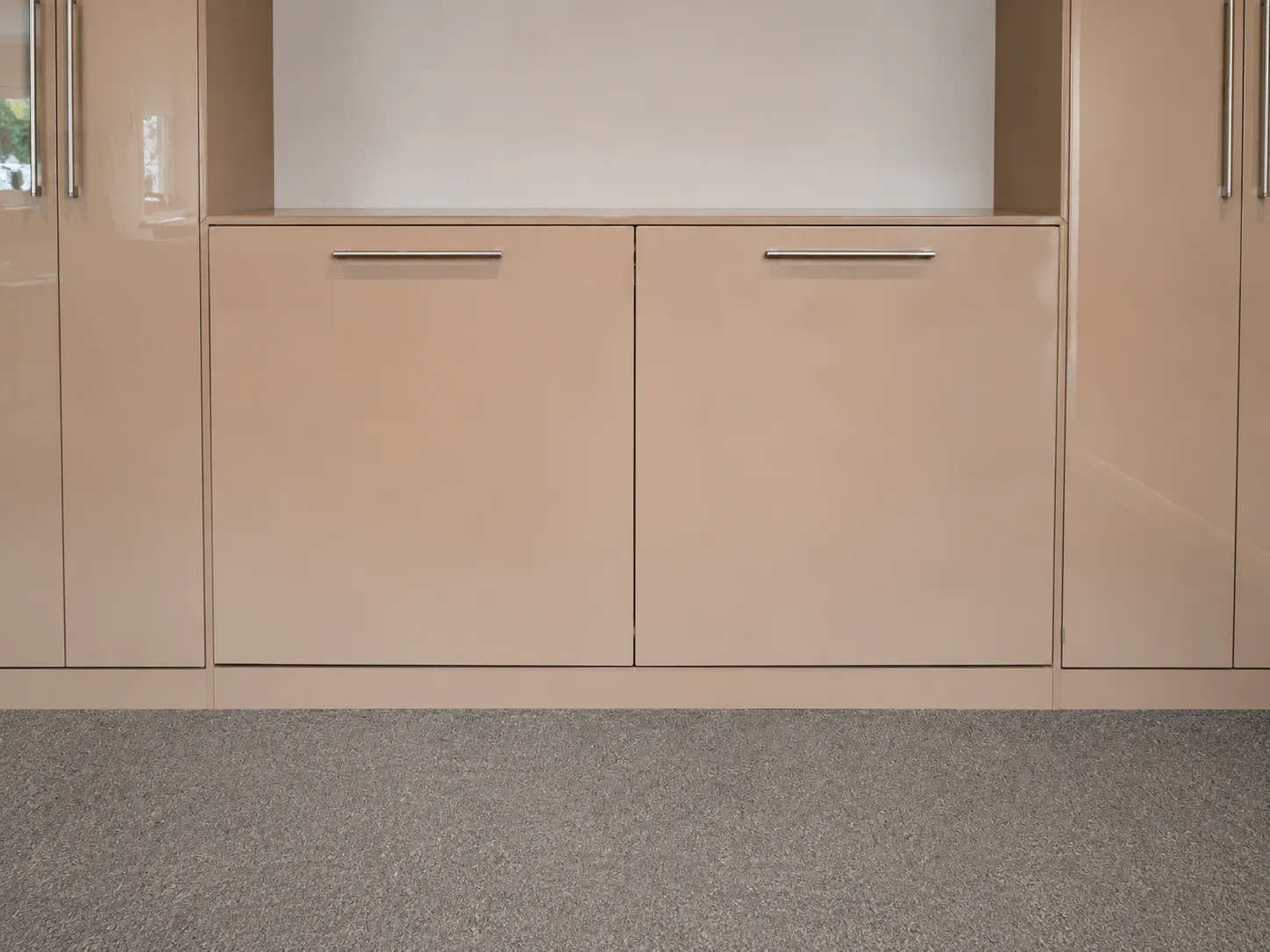

Designed for daily use, the Alpha Bed™ system can be used to create Single, Double and King size folding wall bed systems within a cabinet. The versatility of the design gives the user the option to mount the frame in a vertical or horizontal style.

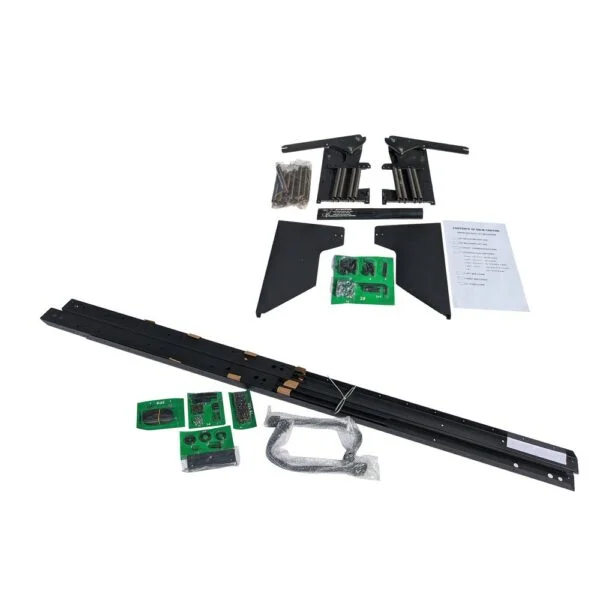

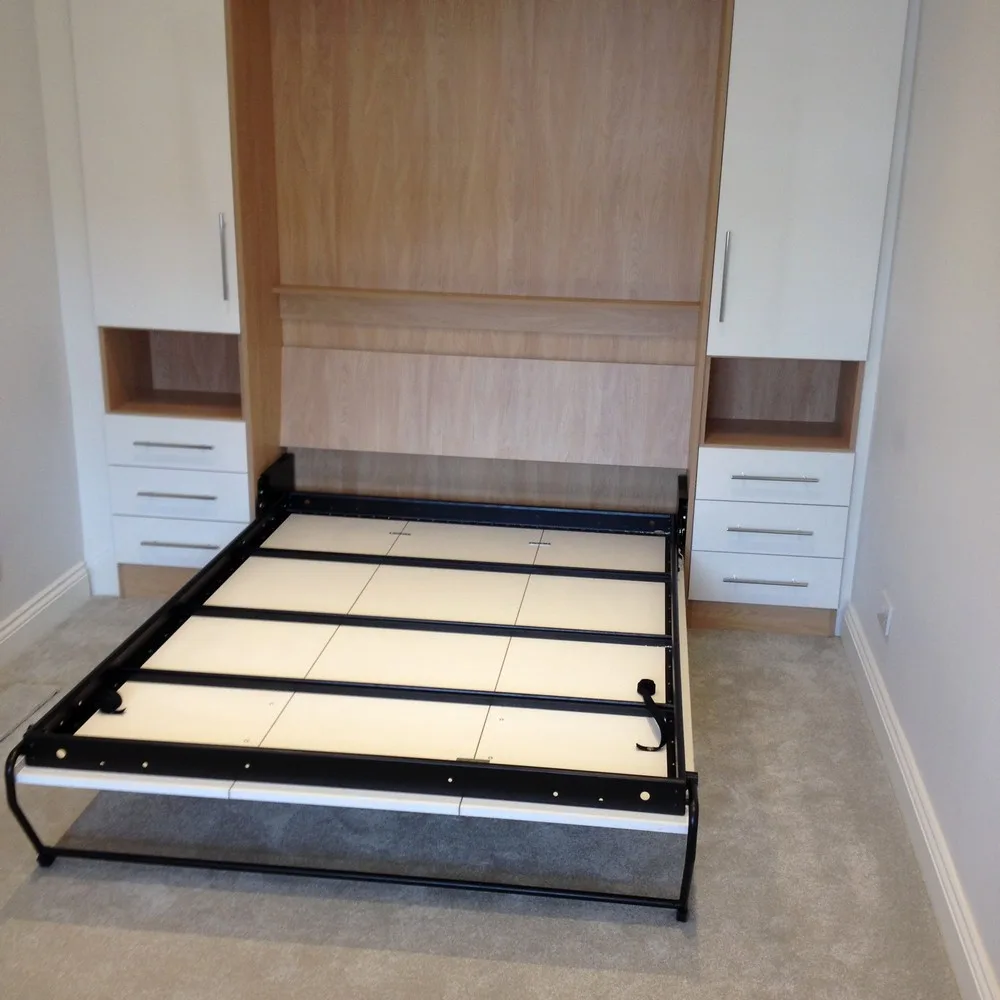

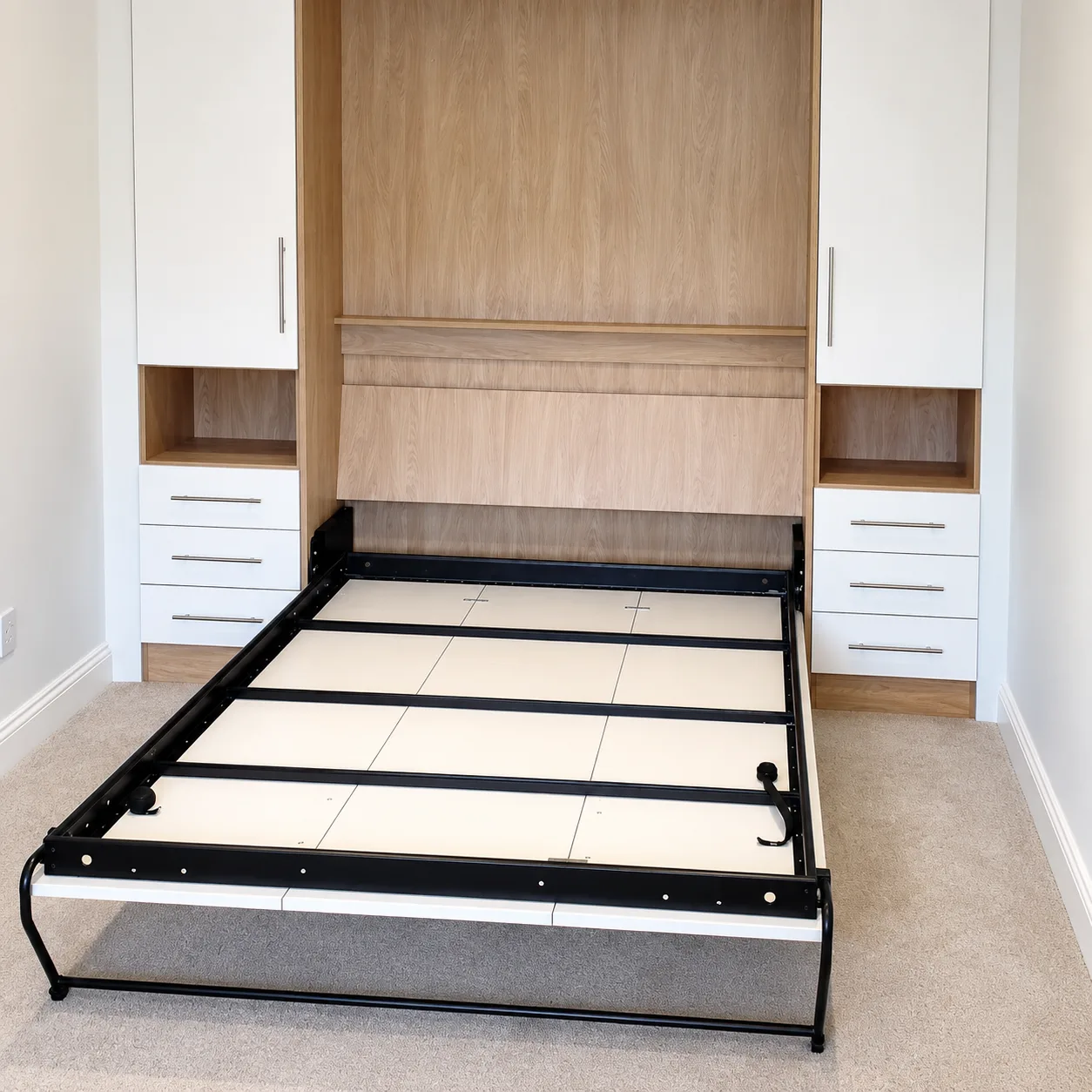

The Alpha Bed™ is a lightweight, universal, structural steel bed frame with double overlap steel stiffeners. The design is complete with our Trip-Free™ leg system and is designed to exceed the strength of wood or aluminium as well as residential and commercial specifications.

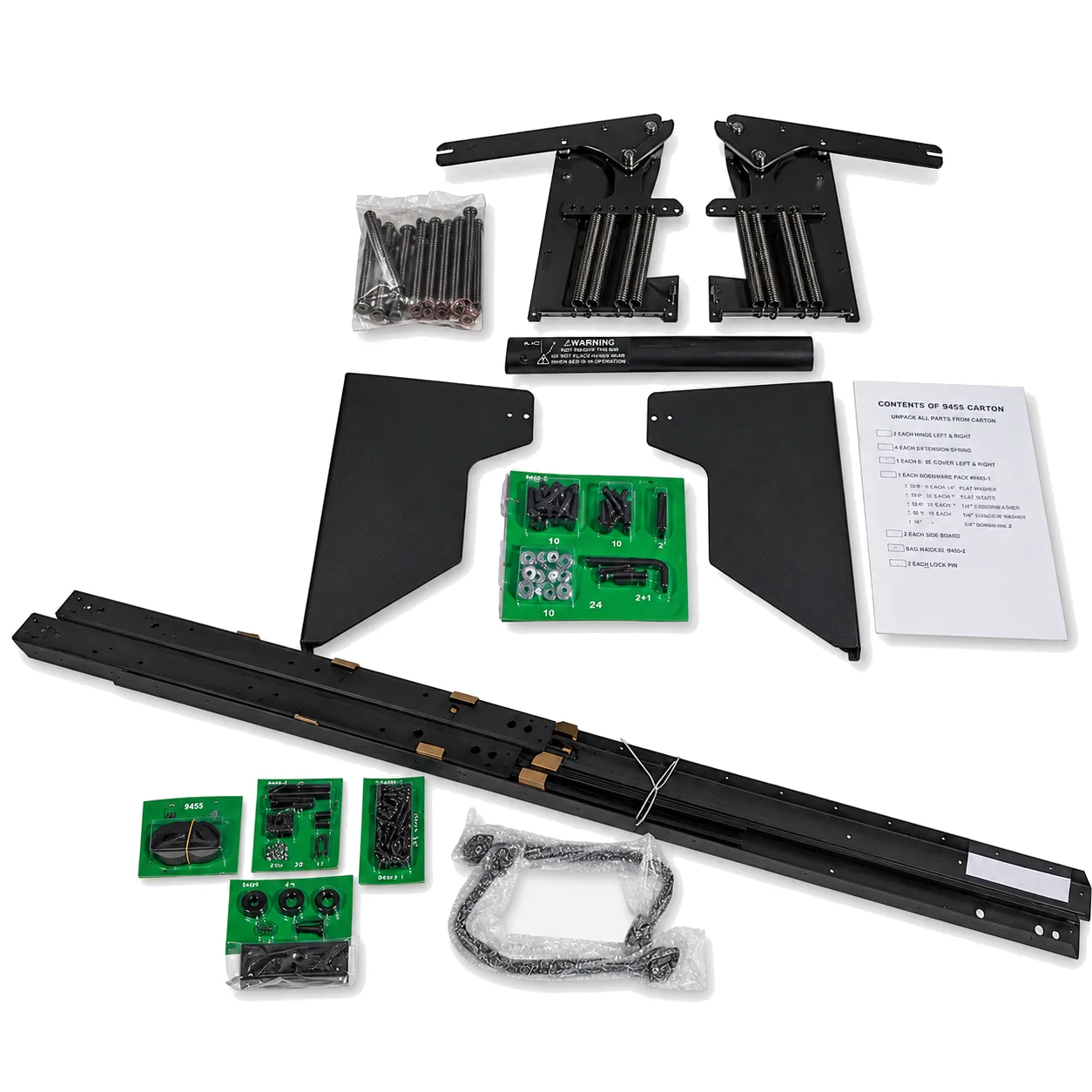

All sizes of the Alpha Bed™ system benefit from our heavy duty, universal, easy-operating lift mechanism, which allows for a variation of spring combination in order to balance all of our available bed sizes.

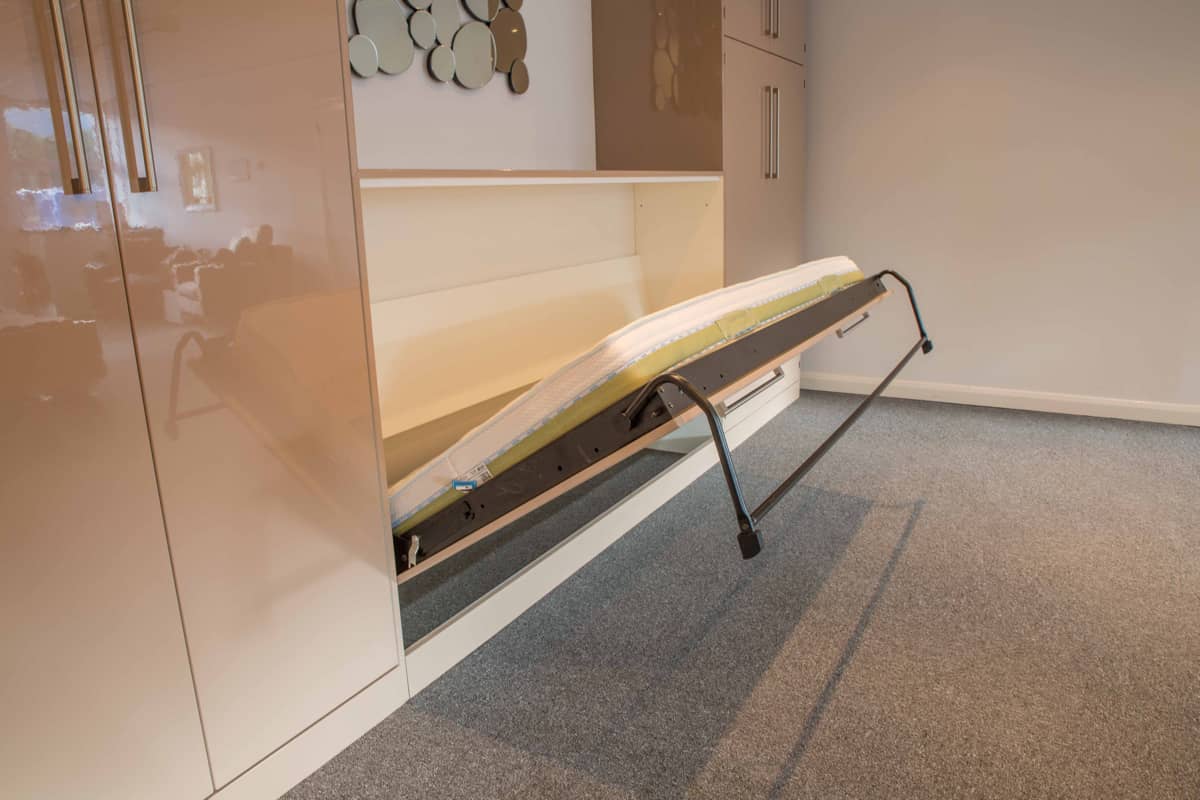

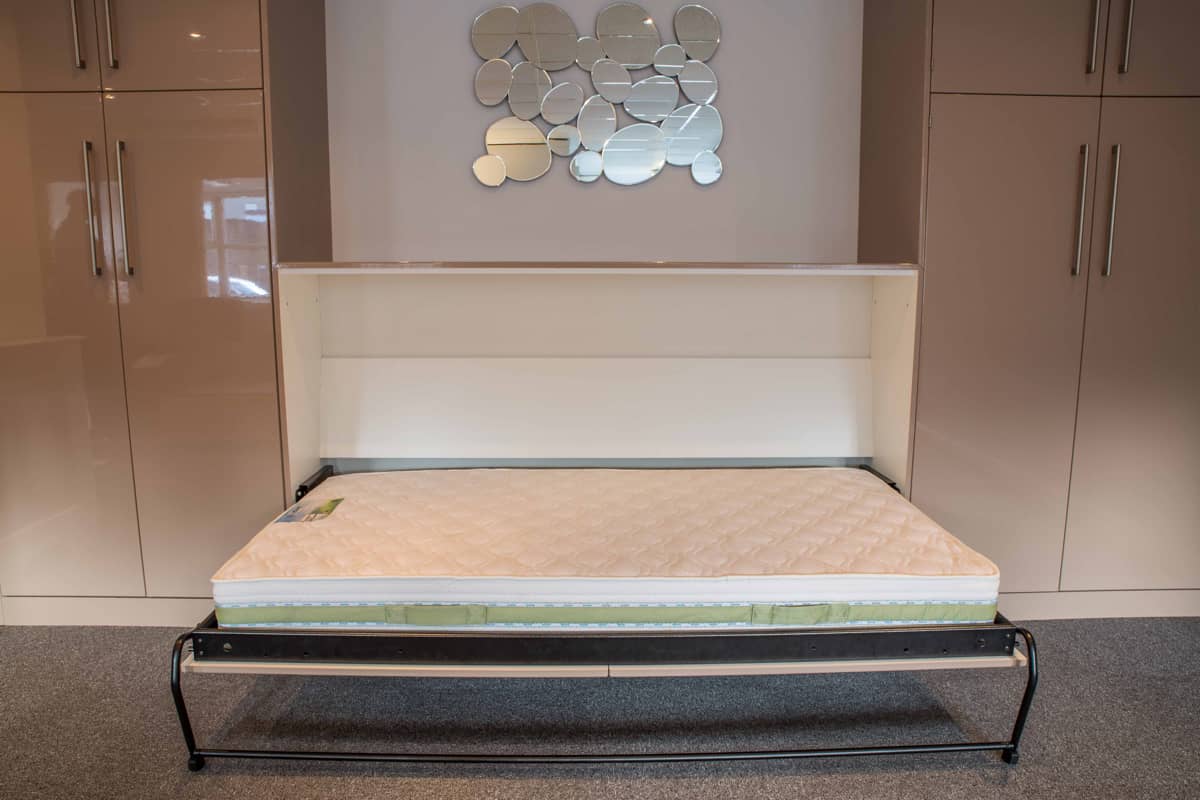

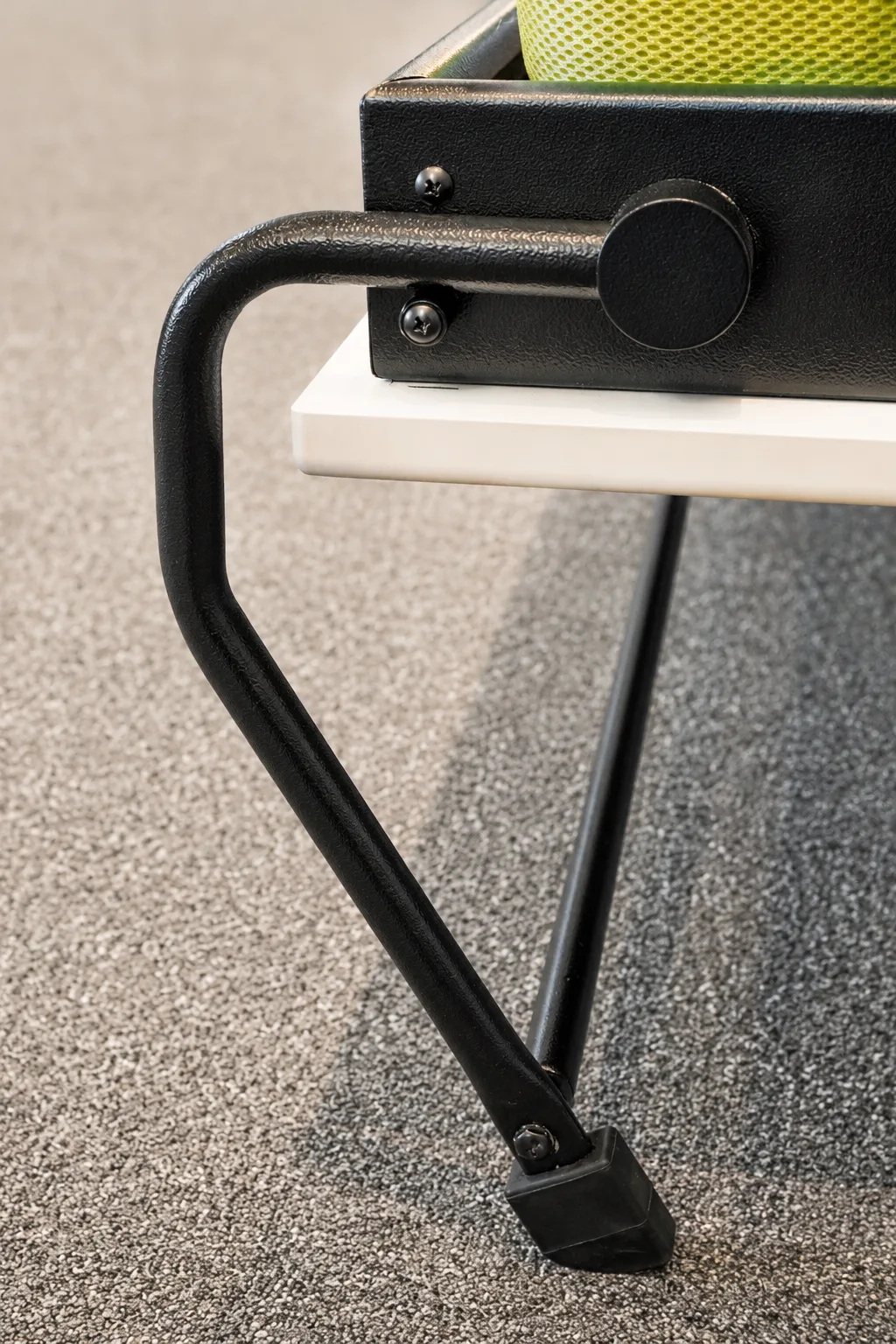

A superb safety aspect of the bed is the mechanisms steady release as the bed is pulled down. This ensures that it does not come crashing to the floor with force or speed, avoiding any health & safety issues or potential damage to the bed. When in use, the legs are tucked under bed so they don’t catch feet. When not in use, the legs rotate over the mattress into the cabinet.

The maximum recommended mattress depth is 28cm.

Types available:

  • Fold down single bed
  • Fold down double bed
  • Fold down king size bed

Additional information


3ft Wide Lying Surface (Single), 4ft6" Wide Lying Surface (Double), 5ft Wide Lying Surface (King)
